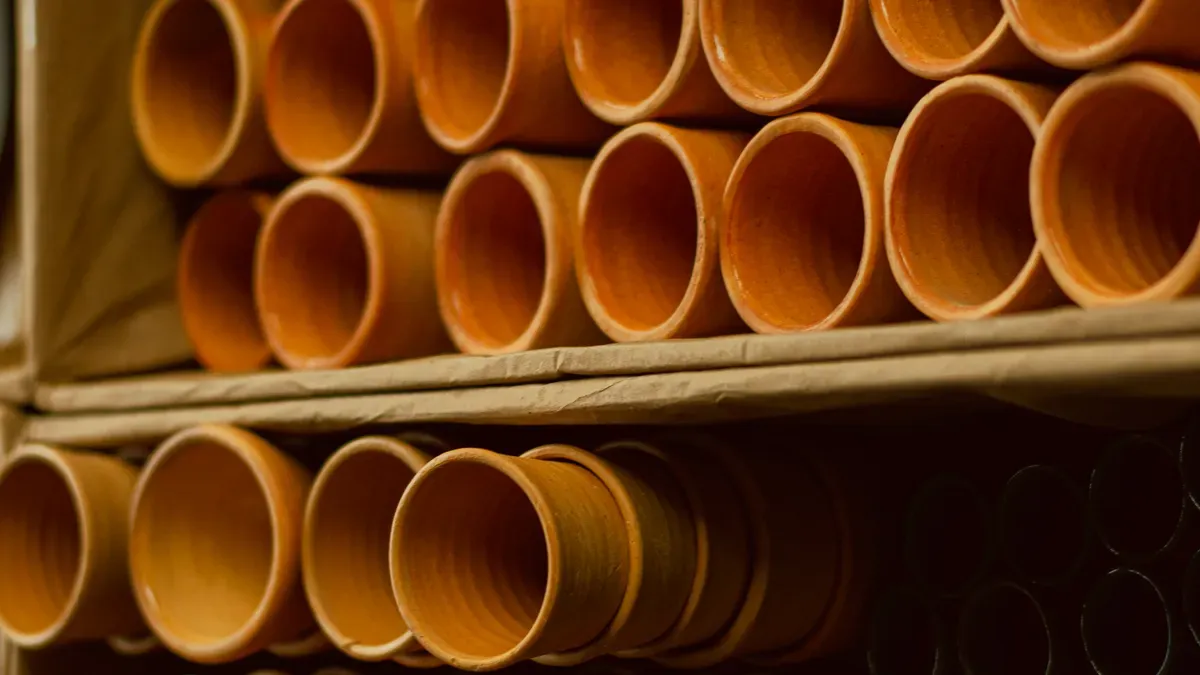

Choosing Between PEEK and Polyimide Tubing

Which high-performance tubing material fits your application? Engineers often choose between PEEK and polyimide. Both materials are top options for tough environments. But they differ a lot in heat limits, chemical resistance, and how easy they are to machine. Each property changes real-world performance.

This Comparative Analysis looks closely at these differences. The goal is to help readers decide based on real operating conditions. Temperature limits matter for some uses. Chemical exposure levels vary widely across industries. Fabrication needs also affect the final choice. Knowing each material's unique strengths leads to better performance and cost results.

Key Takeaways

• PEEK tubing can handle heat up to 260°C, but polyimide can go past 300°C.

• PEEK can handle more chemicals, like bases and steam, but polyimide breaks down when it meets strong bases.

• PEEK is simpler to machine and cheaper, so it is a good option if you want to save money.

• Polyimide has less friction, which works well for moving parts, but PEEK is tougher and stronger.

• Choose PEEK for moderate heat and chemical resistance; choose polyimide for very high heat and low friction.

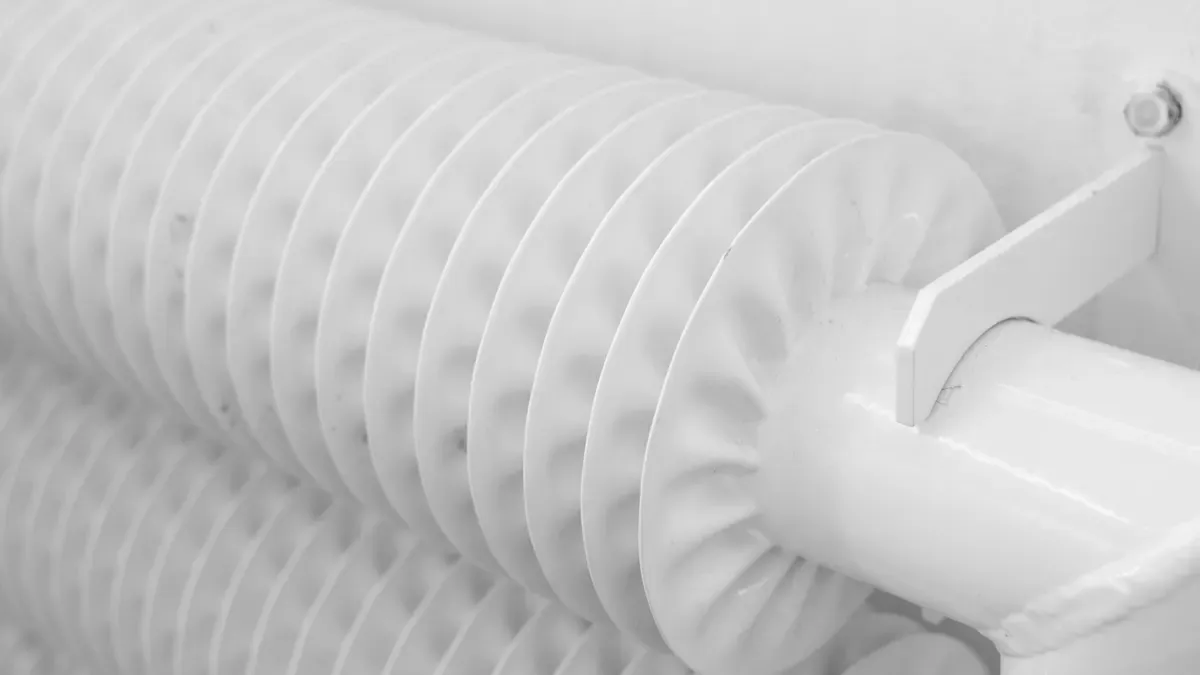

Material Class and Structure

The way a polymer's molecules are built controls how it acts when heated, stressed, or exposed to chemicals. PEEK and polyimide come from very different polymer groups. This key difference shapes every other property that engineers look at.

Thermoplastic vs. Thermoset

PEEK is a thermoplastic. Its long molecule chains stay separate and straight. Heat makes these chains soft, so the material can flow and take new shapes. Cooling locks in that new shape. This can happen many times without ruining the material. Makers can recycle PEEK scraps and grind them up for other uses.

Polyimide is a thermoset. Its molecule chains form a 3D crosslinked web while curing. Once set, this structure cannot melt or flow again. Heat does not soften polyimide; too much heat eventually breaks it down. The crosslinked design gives it amazing heat resistance. General polyimide thermosets can run nonstop across a wide heat range:

• Continuous operating temperatures typically range from 250°C to 400°C, depending on molecular structure and processing methods.

• Solvay's Torlon and Kapton product lines maintain a maximum continuous operating temperature of 260°C, with intermittent capability reaching 310°C.

This heat benefit comes with a downside. Polyimide cannot be reshaped after curing. PEEK can be recycled and reprocessed; polyimide keeps its shape forever and handles heat better.

Processing Implications

Because PEEK is a thermoplastic, it is easy to work with. Makers can heat-form PEEK tubing into curves, tapers, tips, and flanges. They can also weld or fuse PEEK parts with standard heat methods. These options cut waste and lower production costs.

Polyimide needs a different approach. Its thermoset structure requires careful work during the first cure because changes after curing are impossible. Cutting polyimide needs special tools and more force. Bending polyimide tubing takes a lot of effort, and the material fights permanent shape changes. Builders must plan shapes carefully before curing starts.

The structural difference also changes how parts join. PEEK tubing bonds well with adhesives and mechanical fittings. Polyimide tubing often needs custom connectors because it is stiff and resists chemicals. These real-world factors matter just as much as raw performance numbers when picking a material.

Comparative Analysis: Thermal Stability

Heat is the main difference between these two materials. Engineers need to know how each polymer handles high heat and repeated temperature changes. This analysis shows where each material works best and where it does not.

Continuous Use Limits

PEEK tubing can run nonstop at temperatures up to 250–260°C. Aerospace specs list this range for standard unfilled PEEK grades. This makes PEEK good for engine areas, drilling tools, and hot industrial processes.

Polyimide goes much further. Thermoset polyimide types can handle constant heat at 300°C and above. Its crosslinked structure resists heat damage that would break down thermoplastics. This matters for uses near flames or plasma.

Glass transition temperature (Tg) explains part of this gap. Tg is the point where a polymer softens and loses stiffness. PEEK has a Tg around 143°C. Polyimide's Tg goes past 250°C. The table below shows this:

Below Tg, both materials stay stiff and hold their shape. Above Tg, PEEK gets more flexible but still works until it melts. Polyimide never melts; it just breaks down when heat gets too high.

Thermal Cycling Performance

Real-world uses rarely stay at one temperature. Equipment heats up, cools down, and repeats this thousands of times. These cycles stress materials through expansion and contraction.

PEEK handles these cycles well because it is a thermoplastic. The polymer absorbs strain from repeated expansion without cracking. Its toughness stops micro-cracks from forming at stress points. This makes PEEK tubing reliable in systems that switch between room temperature and operating heat.

Polyimide also does well under thermal cycling, but for different reasons. Its rigid crosslinked structure resists bending. However, its stiffness means it passes stress along instead of soaking it up. Connections and fittings must handle this behavior.

Polyimide has another plus at high heat: a lower friction coefficient. This cuts wear when tubing rubs against parts during expansion and contraction. Heat resistance plus low friction makes polyimide useful for moving parts in hot settings.

This analysis shows both materials survive thermal cycling, but they do it in different ways. PEEK bends and bounces back. Polyimide stays stiff and depends on its surface traits. The pick depends on whether the job needs toughness or extreme heat resistance.

Mechanical Properties Comparison

A side-by-side look at mechanical traits shows clear differences between PEEK and polyimide tubing. Tensile strength, flexibility, and wear resistance each help guide material choice. Engineers must match these traits to the needs of their specific use.

Tensile Strength and Flexibility

Tensile strength measures how much pulling force a material can handle before it breaks. PEEK tubing offers a wide range of values depending on grade and reinforcement. At 23°C, an unreinforced grade called PEEK5600G delivers 90 MPa. Reinforced PEEK grades reach up to 250 MPa. This range gives engineers options for different load needs.

Polyimide tubing also shows high tensile strength. KAPTON polyimide film, a common type, achieves 231 MPa at 23°C when measured by ASTM D-882-91 Method A. Another polyimide grade, TECASINT 5111 natural, measures 140 MPa under DIN EN ISO 527-1. These numbers show that both materials can handle significant pulling forces.

Flexibility tells a different story. PEEK, as a thermoplastic, bends and flexes without cracking. Its long polymer chains slide past each other under stress. This trait lets PEEK tubing absorb impacts and follow curved paths. Polyimide, as a thermoset, stays stiff. Its crosslinked structure resists bending. Engineers must plan routing carefully when using polyimide tubing. The material does not give way under force. It passes stress directly to fittings and connections.

Abrasion and Creep Resistance

Abrasion resistance matters when tubing touches moving parts or rough surfaces. Polyimide excels here due to its low friction coefficient. The material slides against surfaces without wearing down quickly. This trait makes polyimide tubing useful for jobs with constant rubbing or sliding contact. Bearings and bushings often use polyimide for this reason.

PEEK offers better toughness and creep resistance. Creep refers to slow deformation under constant load over time. PEEK's thermoplastic structure resists this change. The material holds its shape even under steady pressure or tension. This property suits uses like sealing surfaces and structural supports where parts must stay dimensionally stable.

Both materials deliver strength, low weight, and corrosion resistance. The choice depends on whether the job needs flexibility and creep resistance from PEEK or low friction and stiffness from polyimide. This mechanical comparison helps engineers pick the right material for their working conditions.

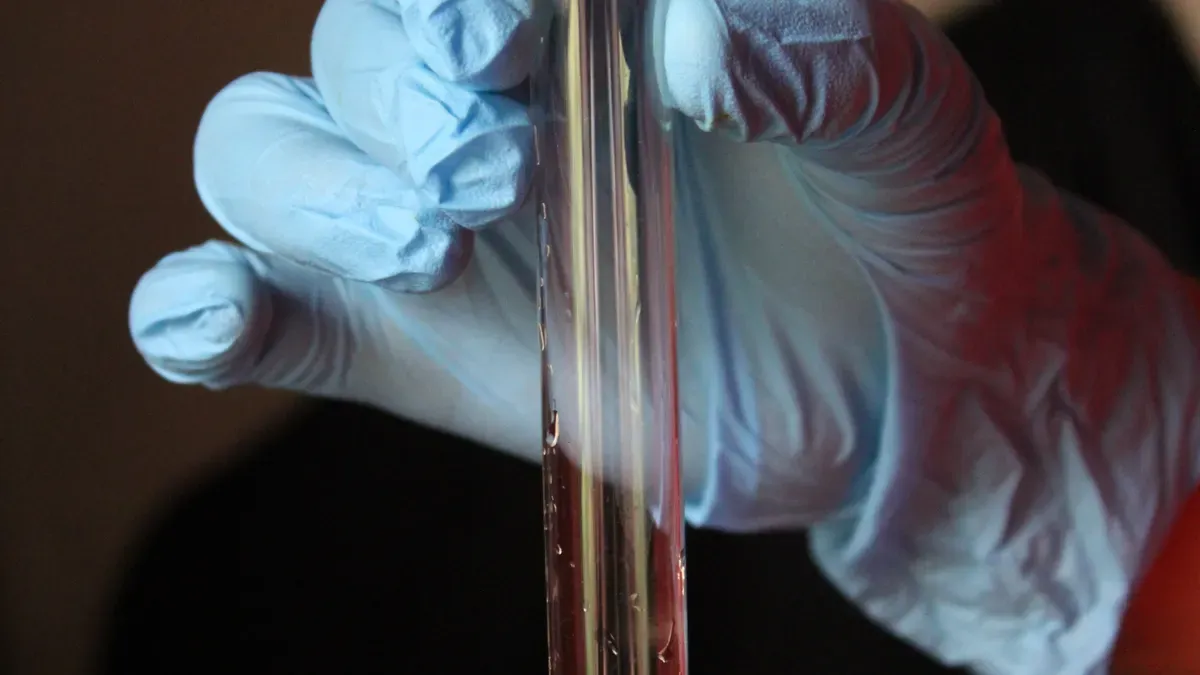

Chemical Resistance Comparison

Chemical exposure often decides which tubing material lasts in real-world use. Engineers must think about every chemical their systems might touch. This guide looks at how PEEK and polyimide tubing handle acids, bases, solvents, and water. Each material has its own strengths and weak spots in different chemical settings.

Acids, Bases, and Solvents

PEEK tubing stands up well to a wide range of chemicals. Its tightly packed structure forms a tough shield that blocks chemicals from getting in. Strong acids, organic acids, and common industrial solvents barely harm PEEK. This material keeps its strength even after long contact with harsh chemical flows. Many chemical plants pick PEEK tubing for this reason.

Polyimide tubing also fights off many acids and organic solvents. Its molecular design gives it natural chemical stability. Weak acids and most hydrocarbon solvents do not damage polyimide tubing. But polyimide has a clear weakness: strong bases. Alkaline solutions attack the bonds that hold polyimide together. This flaw limits polyimide use in places with caustic cleaners or basic process streams.

This difference shows up in real jobs. A system moving acidic waste can safely use either material. A system with alkaline cleaning steps needs careful thought. PEEK tubing handles both acidic and basic conditions without breaking down much. Polyimide tubing needs tighter control of the chemical environment to avoid early failure.

Hydrolytic Stability

Hydrolytic stability means how well a material resists damage from water. This matters in steam cleaning, hot water systems, and damp places. PEEK tubing does great in these conditions. Its polymer chains resist water damage even at high heat. Medical device makers steam-clean PEEK parts over and over without losing strength. Hot water systems with PEEK tubing keep working well for a long time.

Polyimide tubing does not handle water as well. Steam and hot water speed up the breakdown of polyimide's bonds. This damage makes the material brittle and weak over time. Constant steam contact sharply cuts polyimide tubing's lifespan. Engineers should avoid polyimide in jobs with direct steam or long hot water exposure.

This chemical comparison shows a clear trend. PEEK tubing works with more chemicals and handles water better. Polyimide tubing does fine in dry, acidic, or solvent-heavy places but fails in alkaline or steamy conditions. The chemical setting of the job should guide material choice just as much as heat needs.

Cost and Machinability Considerations

Budget realities often shape material selection as much as performance data does. Engineers must weigh raw material prices against fabrication expenses. PEEK and polyimide tubing carry different cost profiles at every stage. Understanding these differences prevents unpleasant surprises during production.

Material Cost Trends

PEEK tubing generally costs less than polyimide tubing on a per-unit basis. Several factors drive this price gap. PEEK production benefits from established manufacturing processes and higher output volumes. Polyimide synthesis requires more complex chemistry and tighter process controls. These factors push polyimide prices upward.

PEEK also offers a significant economic advantage as a metal replacement. Components that traditionally use stainless steel or aluminum can switch to PEEK tubing. The material delivers comparable strength at a fraction of the weight. Machining PEEK costs less than machining metals because tools wear slower. This combination makes PEEK a cost-effective choice for many industrial applications.

Polyimide commands a premium price because of its specialized properties. Applications that demand extreme heat resistance justify this higher cost. Industries such as aerospace and semiconductor manufacturing accept the expense. They need polyimide's unique thermal performance. For moderate operating conditions, however, the price difference rarely makes sense.

Machining Complexity

PEEK tubing machines easily with standard equipment. Its thermoplastic nature allows heat-forming into curves, tapers, tips, and flanges. Manufacturers can weld or fuse PEEK components using conventional methods. These processing options reduce waste and shorten production timelines. Standard cutting tools work effectively without special coatings or geometries.

Polyimide presents greater machining challenges. Its thermoset structure resists cutting and shaping. The material requires more force to bend, and it fights permanent shape changes. Fabricators need specialized tools designed for rigid, abrasive polymers. Cutting polyimide generates significant heat, so operators must manage speeds carefully. Tool wear occurs faster than with PEEK, increasing replacement costs.

Post-forming options also differ dramatically. PEEK tubing can undergo secondary operations after initial fabrication. Technicians can tip, taper, or flange PEEK components as needed. Polyimide cannot reform after curing. Any shape changes require planning before the material sets. This limitation forces manufacturers to order custom profiles from the start.

The machining gap affects total project costs. PEEK's ease of fabrication lowers labor expenses and tooling investments. Polyimide's difficulty adds time and complexity to every production run. Engineers should calculate these hidden costs when comparing materials.

Decision Framework: When to Use Which

Choosing between PEEK and polyimide tubing means matching what each material does best with what your job needs. Engineers must think about heat levels, chemical contact, how the part will be made, and cost limits. This guide turns technical facts into useful advice for picking materials.

When to Choose PEEK

PEEK tubing works well for jobs with heat up to 260°C. Chemical plants like PEEK because it fights off strong acids, bases, and solvents. The material keeps its strength even after long contact with harsh chemicals. PEEK also stands up to steam and hot water without breaking down, so it works great for cleaning with sterilization.

Medical tool makers often pick PEEK for catheters and surgery tools. The material is safe for the body and can be sterilized many ways. PEEK handles autoclave steam, EtO gas, and gamma rays without damage. This makes cleaning and reuse easy for hospitals.

PEEK works with autoclave, EtO, and gamma radiation cleaning.

Cost also makes PEEK a smart pick for many jobs. PEEK tubing usually costs less than polyimide tubing. It is also easier to machine, which cuts production costs. Makers can heat-form PEEK into curves, tapers, tips, and flanges with regular tools. This saves time and lowers labor expenses.

PEEK also works well as a replacement for metal parts. The material gives similar strength but weighs less. Companies that want rust resistance without heavy metal often switch to PEEK. Its toughness and resistance to slow deformation suit seals and parts that carry heavy loads.

When to Choose Polyimide

Polyimide tubing is the better pick when heat goes past PEEK's limits. Jobs that run above 260°C all the time need polyimide's crosslinked structure. The material stays strong at 300°C and higher. Aircraft engines and very hot factory processes need this level of heat performance.

Low-friction needs also point to polyimide. The material's slippery surface cuts wear in moving parts. Bearings, bushings, and parts that slide against each other benefit from polyimide's self-lubricating nature. This resistance to wear makes parts last longer in tough machines.

Polyimide tubing does well in dry places with acid or solvent contact. The material resists many acids and organic solvents effectively. Chip makers and special chemical plants use this chemical stability. But engineers must keep polyimide away from strong bases and steam.

The material's stiffness suits jobs that need stable shapes under pressure. Polyimide resists bending better than thermoplastics in some cases. Its rigid structure keeps exact shapes even under mechanical stress. This matters for parts that must fit within tight limits.

Polyimide's higher price makes sense only in extreme conditions. Aerospace and chip-making industries pay the premium. They need polyimide's special mix of extreme heat resistance and low friction. For normal heat levels, the extra cost rarely pays off.

The final pick depends on the job's highest heat, which chemicals are present, and how the part gets made. Engineers should check each factor against the material traits covered here. Talking with material suppliers offers extra confirmation for specific uses.

Polyimide tubing wins in ultra-high heat and low-friction settings. PEEK tubing offers better toughness, broader chemical resistance, and lower processing costs for moderate conditions. The right choice depends on the application's temperature ceiling, chemical exposure, and post-forming needs.

Market trends reflect PEEK's growing appeal across industries:

Engineers should evaluate their operating parameters against these comparisons. Consulting material suppliers provides final validation for specific applications.

FAQ

What temperature limits separate PEEK from polyimide tubing?

PEEK tubing can run nonstop up to 260°C. Polyimide can handle 300°C and higher. If your job runs hotter than 260°C, you need polyimide's crosslinked structure. For cooler jobs, either material works, but PEEK is easier to shape and costs less.

Which material resists chemicals better?

PEEK fights off more chemicals overall. It stands up to strong acids, bases, and solvents without breaking down much. Polyimide resists many acids and organic solvents but fails when strong bases are present. Polyimide also gets damaged by steam and hot water, while PEEK handles both without trouble.

How do costs compare between the two materials?

PEEK tubing usually costs less than polyimide tubing. PEEK also machines easier with regular tools, which lowers production costs. Polyimide needs special equipment and slower cutting speeds. For normal operating conditions, PEEK gives similar performance at a much lower total cost.

Can both materials withstand sterilization?

PEEK handles autoclave steam, EtO gas, and gamma radiation without losing strength. Medical device makers sterilize PEEK parts over and over. Polyimide does not handle steam well; hydrolysis breaks down its molecular structure. Hospitals and medical facilities choose PEEK for reusable instruments and catheters.

Which material suits moving parts better?

Polyimide shines in low-friction jobs. Its slippery surface cuts wear during sliding contact. Bearings and bushings benefit from this trait. PEEK offers better toughness and creep resistance, making it better for structural parts under constant load. The choice depends on whether friction or dimensional stability matters more.
