NiTi Laser Processing Techniques for Superior Precision

AccuPath

·April 17, 2025

·17 min read

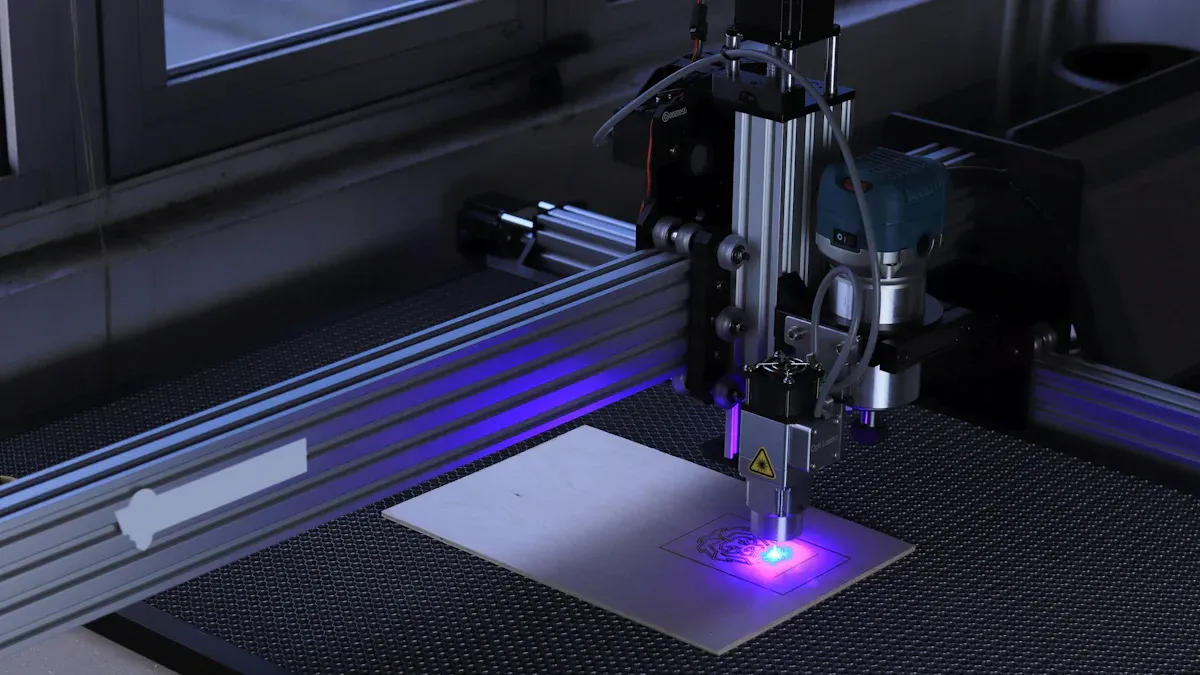

NiTi Laser Processing Techniques for Superior Precision — Image Source: pexels

Precision plays a critical role in NiTi laser micromachining, especially in industries like medical devices and aerospace. These sectors demand components with exacting tolerances and flawless functionality. However, NiTi’s shape memory and superelasticity introduce unique difficulties during machining. These properties, while advantageous in applications, complicate cutting and shaping processes. Advanced NiTi laser processing techniques have become essential to overcome these challenges, ensuring reliable and accurate results.

Key Takeaways

Accuracy is very important in NiTi laser cutting for medical and aerospace uses.
Keeping laser machines clean and adjusted helps cut better and avoids mistakes.
Choosing the right laser settings, like power and pulse time, makes cuts smoother.
Controlling the workspace, like keeping the temperature and air right, helps with better cutting.
Using new methods like super short pulse lasers and smart AI tools improves speed and quality.

NiTi Laser Processing and Its Challenges

Overview of NiTi and its industrial applications

Nickel-Titanium (NiTi), commonly known as Nitinol, is a unique alloy widely used in industries requiring high-performance materials. Its shape memory and superelasticity make it indispensable in sectors like medical devices, aerospace, and robotics. For instance, NiTi is frequently used in stents, orthodontic wires, and actuators due to its ability to return to its original shape after deformation. In aerospace, its lightweight and high fatigue resistance contribute to the development of advanced components. A study by Oliveria JP et al. in 2016 highlighted the functional behavior of NiTi plates during tungsten inert gas (TIG) welding, showcasing its adaptability in manufacturing processes.

Study Title	Authors	Year	Focus
Tungsten inert gas (TIG) welding of Ni-rich NiTi plates: functional behavior	Oliveria JP, Barbosa D, Braz Fernandes FM, Miranda RM	2016	Empirical data on welding process and material properties

Unique properties of NiTi affecting laser micromachining

NiTi’s unique properties, while advantageous in applications, pose challenges during laser micromachining. Its shape memory effect allows it to recover its original form when heated, complicating precise cutting. Additionally, its superelasticity makes it resistant to deformation, requiring advanced techniques to achieve desired results. The alloy’s high reflectivity and thermal conductivity further affect laser absorption, leading to uneven energy distribution. These characteristics demand careful consideration of laser parameters to ensure precision and efficiency.

Common challenges in achieving precision

Achieving precision in NiTi laser micromachining involves overcoming several obstacles. The material’s thermal sensitivity can cause heat-affected zones (HAZ), leading to microcracks or distortions. Controlling the laser’s energy output is critical to avoid excessive melting or material loss. Moreover, the alloy’s tendency to form burrs during micromachining requires additional post-processing, increasing production time and costs. Environmental factors, such as temperature and humidity, also influence the process, necessitating strict control to maintain consistent results.

Key Factors Influencing Precision

Material properties and laser interaction

The interaction between NiTi’s material properties and laser energy plays a critical role in achieving cutting precision. NiTi’s high reflectivity and thermal conductivity influence how laser energy is absorbed and distributed. Numerical studies have shown that varying the volume energy density (VED) during laser micromachining significantly affects the alloy’s microstructure. For instance:

Higher laser energy density refines the grain structure and enhances corrosion resistance by forming a stable titanium dioxide (TiO2) passive layer.
Electrochemical tests reveal that samples processed with high energy density exhibit a seven-fold increase in corrosion resistance compared to those with low energy density.

These findings highlight the importance of optimizing laser parameters to achieve precise micromachining results while maintaining the functional properties of NiTi.

Laser type and wavelength selection

Selecting the appropriate laser type and wavelength is essential for achieving accuracy in NiTi micromachining. Fiber lasers and ultrashort pulse lasers are commonly used due to their ability to deliver high energy density with minimal heat-affected zones. Shorter wavelengths, such as those in the ultraviolet range, improve cutting precision by reducing thermal diffusion and increasing energy absorption. This is particularly important for NiTi, as its thermal sensitivity can lead to microcracks or distortions if the wrong laser type is used. Proper wavelength selection ensures efficient energy transfer, enabling precise cutting and shaping of NiTi components.

System components and beam delivery

The performance of system components and the efficiency of beam delivery directly impact the precision of laser micromachining. Key parameters such as laser power, scanning speed, and powder layer thickness influence the microstructure and mechanical properties of NiTi. For example:

Adjusting these parameters can tailor the martensitic transformation temperatures, enhancing the shape memory effect and superelasticity.
LPBF technology, preferred over EBM, offers superior manufacturing capabilities. EBM’s larger beam size creates a larger molten pool, reducing cutting precision and geometric accuracy.

Optimizing system components and beam delivery ensures consistent results, reducing the need for post-processing and improving overall efficiency.

Environmental control for precision

Environmental factors significantly influence the precision of NiTi laser micromachining. Maintaining a controlled environment ensures consistent results and minimizes errors caused by external variables. Temperature, humidity, and air quality are critical parameters that require careful monitoring during the process.

Temperature fluctuations can alter the thermal conductivity of NiTi, leading to uneven energy absorption. This inconsistency may result in defects such as microcracks or distortions. To counter this, manufacturers often use temperature-controlled chambers to stabilize the working environment. These chambers maintain a constant temperature, ensuring uniform laser-material interaction.

Humidity also plays a vital role in achieving accurate results. Excessive moisture in the air can lead to oxidation on the NiTi surface, affecting the laser's ability to cut cleanly. Dehumidifiers or dry air systems are commonly employed to maintain optimal humidity levels. These systems prevent surface contamination and enhance the overall quality of the machined components.

Air quality impacts the precision of laser micromachining as well. Dust particles or other contaminants in the air can interfere with the laser beam, reducing its effectiveness. Cleanroom environments, equipped with advanced filtration systems, help eliminate airborne particles. These setups ensure that the laser operates without obstruction, delivering precise cuts and shapes.

Tip: Regularly calibrating environmental control systems can further improve the reliability of NiTi laser micromachining processes.

By prioritizing environmental control, manufacturers can achieve higher precision and reduce the need for post-processing. This approach not only enhances the quality of NiTi components but also improves production efficiency.

Tips for Precision Laser Cutting

Regular maintenance and calibration

Regular maintenance and calibration of laser systems are essential for achieving precision laser cutting. Over time, components such as lenses, mirrors, and beam delivery systems may degrade or misalign, reducing the accuracy of the cutting process. Routine inspections help identify wear and tear, ensuring that the system operates at peak performance.

Calibration plays a critical role in maintaining cutting precision. By aligning the laser beam and optimizing its focus, manufacturers can achieve consistent results during micromachining. For instance, a misaligned beam may cause uneven energy distribution, leading to defects in the final product. Regular calibration minimizes these risks, ensuring high-quality results.

AccuPath’s advanced Nitinol Tubing benefits significantly from well-maintained laser systems. Their tubing requires precise micromachining to meet the stringent demands of industries like medical devices and aerospace. By prioritizing maintenance and calibration, manufacturers can deliver components that meet exacting standards.

Tip: Schedule periodic maintenance checks and use diagnostic tools to monitor system performance. This proactive approach reduces downtime and enhances cutting efficiency.

Design optimization for NiTi components

Design optimization is a crucial step in achieving superior precision laser cutting for NiTi components. A well-thought-out design minimizes material waste and enhances the efficiency of the micromachining process. Engineers should consider the unique properties of NiTi, such as its shape memory and superelasticity, during the design phase.

One effective strategy involves tailoring the design to reduce thermal stress during cutting. For example, incorporating features that allow for better heat dissipation can prevent the formation of heat-affected zones. Additionally, optimizing the geometry of NiTi components ensures smoother laser-material interaction, improving the overall quality of the final product.

AccuPath’s Nitinol Tubing exemplifies the benefits of design optimization. Their tubing is engineered to meet the highest standards of precision and functionality, making it ideal for critical applications. By focusing on design optimization, manufacturers can achieve high-quality results while reducing production costs.

Note: Collaborate with design engineers to create CAD models that account for NiTi’s unique properties. This approach streamlines the micromachining process and enhances cutting accuracy.

Real-time process monitoring

Real-time process monitoring is vital for maintaining precision during laser micromachining. Advanced monitoring systems provide immediate feedback on cutting parameters, allowing operators to make adjustments as needed. This ensures consistent results and minimizes the risk of defects.

Modern laser systems often include sensors and cameras that track key metrics such as laser power, beam focus, and material temperature. These tools enable manufacturers to detect anomalies in real time, preventing issues like burr formation or excessive melting. For NiTi components, real-time monitoring is particularly important due to the material’s sensitivity to heat.

AccuPath’s Nitinol Tubing benefits from cutting-edge monitoring technologies. These systems ensure that every piece of tubing meets stringent quality standards, delivering reliable performance in critical applications. By investing in real-time monitoring, manufacturers can enhance both precision and efficiency.

Tip: Utilize software solutions that integrate with laser systems for automated process monitoring. This reduces human error and improves overall cutting precision.

Selecting optimal laser parameters

Selecting the right laser parameters is critical for achieving precision and efficiency in NiTi micromachining. Proper parameter selection ensures clean cuts, minimal defects, and optimal material performance. Manufacturers must consider several factors, including power, pulse duration, repetition rate, and scanning speed, to achieve the desired results.

Power and Pulse Duration

Laser power directly influences the energy delivered to the material. Higher power levels can increase cutting speed but may also lead to excessive heat generation. This can compromise the purity of the material and create heat-affected zones. On the other hand, lower power levels reduce thermal damage but may slow down the process. Finding the right balance is essential for maintaining both precision and efficiency.

Pulse duration also plays a significant role in determining the quality of the cut. Shorter pulse durations, such as those in femtosecond or picosecond lasers, minimize thermal diffusion. This reduces the risk of microcracks and burr formation. Longer pulse durations, while less precise, may be suitable for applications where speed is prioritized over fine detail.

Repetition Rate and Scanning Speed

The repetition rate, or the frequency at which laser pulses are emitted, affects the smoothness of the cut. A higher repetition rate can improve the kerf quality by creating a more continuous cutting path. However, excessive repetition rates may lead to overlapping pulses, increasing the risk of thermal damage. Adjusting the repetition rate based on the material's properties ensures a balance between speed and precision.

Scanning speed determines how quickly the laser moves across the material. Faster scanning speeds reduce the heat input per unit area, preserving the material's purity. Slower speeds, while increasing energy absorption, may cause localized overheating. Manufacturers must optimize scanning speed to achieve a clean kerf without compromising the material's structural integrity.

Material Selection and Parameter Optimization

Material selection significantly impacts the choice of laser parameters. NiTi's unique properties, such as its shape memory and superelasticity, require careful consideration during parameter optimization. For instance, the alloy's high reflectivity necessitates the use of shorter wavelengths to enhance energy absorption. Additionally, its thermal sensitivity demands precise control over power and pulse duration to prevent defects.

Advanced software tools can assist in parameter optimization by simulating the laser-material interaction. These tools allow manufacturers to test different settings and identify the most effective combination for their specific application. By tailoring the parameters to the material's characteristics, manufacturers can achieve superior results with minimal post-processing.

Importance of Testing and Validation

Testing and validation are crucial steps in selecting optimal laser parameters. Manufacturers should conduct trials on sample materials to evaluate the effects of different settings. This process helps identify the ideal parameters for achieving high precision and efficiency. Regular validation ensures that the selected parameters remain effective over time, accounting for variations in material batches or environmental conditions.

Tip: Documenting the results of parameter testing can provide valuable insights for future projects. This practice helps streamline the selection process and improves overall efficiency.

By carefully selecting and optimizing laser parameters, manufacturers can enhance the quality of NiTi components while reducing production costs. This approach ensures that the final products meet the stringent requirements of industries like medical devices and aerospace.

Advanced NiTi Laser Processing Techniques

Ultrashort pulse lasers for precision

Ultrashort pulse (USP) lasers have revolutionized laser micromachining by delivering unparalleled precision. These lasers operate with pulse durations in the femtosecond or picosecond range, enabling localized near-athermal ablation. This minimizes heat-affected zones, ensuring excellent finish quality and preserving the structural integrity of high-purity materials like NiTi. USP lasers excel in applications requiring extreme levels of precision, such as the production of cardiovascular stents. These stents demand tolerances as low as +/- 2.5 µm, which USP lasers achieve with remarkable accuracy.

Several factors contribute to the effectiveness of USP lasers in high precision micromachining. Their unique photo-ionization mechanism allows consistent results across various patterns, making them ideal for cutting intricate designs. Additionally, USP lasers demonstrate faster material removal rates compared to longer pulse durations, enhancing efficiency without compromising quality. This capability proves invaluable in industrial laser micromachining solutions, where precision and speed are critical.

The adoption of USP lasers extends beyond NiTi processing. For example, they are widely used in cutting and drilling ceramic semiconductor wafers, where precision and minimal thermal damage are essential. By leveraging USP lasers, manufacturers achieve superior results, meeting the stringent demands of industries like medical devices and electronics.

Automation and AI-driven optimization

Automation and artificial intelligence (AI) have transformed the landscape of laser micromachining. These technologies enhance accuracy and efficiency by optimizing the tool path and cutting parameters in real time. AI algorithms analyze data from sensors and cameras, identifying patterns and making adjustments to improve performance. This reduces human error and ensures consistent results, even in complex applications.

One significant advantage of AI-driven optimization is its ability to adapt to variations in material properties. For instance, NiTi’s thermal sensitivity requires precise control over laser parameters. AI systems monitor these parameters continuously, adjusting power, pulse duration, and scanning speed to maintain optimal conditions. This approach minimizes defects and enhances the overall quality of the machined components.

Automation also streamlines the production process by integrating advanced software solutions. These systems simulate laser-material interactions, allowing manufacturers to test and refine their designs before production. This reduces waste and shortens development cycles, making laser micromachining more cost-effective. By combining automation with AI, manufacturers achieve higher productivity and deliver components with exceptional precision.

Advanced cooling systems for thermal management

Thermal management plays a crucial role in achieving precision during laser micromachining. Advanced cooling systems mitigate the heat generated during cutting, preventing thermal damage and ensuring consistent results. These systems are particularly important for materials like NiTi, which are sensitive to temperature fluctuations.

Modern cooling technologies use innovative methods to dissipate heat effectively. For example, liquid cooling systems circulate coolant around the laser and workpiece, maintaining a stable temperature. This prevents overheating and reduces the risk of microcracks or distortions. Air-cooled systems, equipped with high-efficiency fans, offer an alternative solution for applications requiring less intensive cooling.

Cryogenic cooling represents another advancement in thermal management. This technique uses extremely low temperatures to enhance the cutting process. By cooling the workpiece to cryogenic levels, manufacturers achieve localized near-athermal ablation, minimizing heat-affected zones. Cryogenic cooling also improves the machinability of NiTi, enabling precise cuts with excellent finish quality.

Integrating advanced cooling systems into laser micromachining setups enhances both precision and efficiency. These systems ensure that the laser operates under optimal conditions, delivering high-quality results for critical applications like minimally invasive surgical techniques and aerospace components.

Hybrid laser micromachining methods

Hybrid laser micromachining methods combine multiple machining techniques to enhance precision and efficiency. These methods leverage the strengths of different processes to overcome the limitations of standalone techniques. For materials like NiTi, hybrid approaches improve cutting accuracy, reduce thermal damage, and enhance surface quality.

One notable hybrid method is Laser-Assisted Electrochemical Machining (LECM). This process integrates a green laser with a wavelength of 532 nm and electrochemical machining (ECM). The laser weakens the passive oxide layer on the NiTi surface, allowing the electrochemical process to target the bulk material more effectively. This synergy ensures localized material removal while maintaining the surface's integrity. The laser also increases the local temperature and enhances the electrolyte's conductivity. These changes result in higher current density, accelerating the electrochemical dissolution process. However, precise control of laser and ECM parameters is essential to prevent adverse effects such as electrolyte boiling or plasma formation.

Another hybrid technique involves combining laser micromachining with mechanical processes like ultrasonic vibration. In this method, ultrasonic vibrations assist the laser in removing material. The vibrations reduce the cutting force and improve the laser's interaction with the material. This combination minimizes burr formation and enhances the overall quality of the machined component. It is particularly effective for intricate designs and thin-walled structures, where traditional methods may struggle to achieve the required precision.

Hybrid methods also include laser-assisted additive manufacturing processes. These techniques use lasers to selectively melt NiTi powder while incorporating post-processing steps like heat treatment or surface polishing. The hybrid approach ensures that the final product meets stringent dimensional and functional requirements. For example, laser-assisted selective laser melting (SLM) produces components with excellent mechanical properties and minimal defects. This method is ideal for applications requiring complex geometries and high-performance materials.

The adoption of hybrid laser micromachining methods continues to grow across industries. These techniques address the challenges of NiTi laser processing by combining the precision of lasers with the advantages of complementary processes. Manufacturers achieve superior results, making hybrid methods a valuable addition to advanced machining technologies.

Tip: When implementing hybrid methods, manufacturers should conduct thorough testing to optimize process parameters. This ensures consistent results and minimizes potential defects.

Precision in NiTi laser micromachining remains vital for industries like medical devices and aerospace. Advanced techniques ensure superior results by addressing challenges posed by NiTi’s unique properties. Key factors such as laser type, environmental control, and parameter optimization enhance accuracy. Tips like real-time monitoring and regular maintenance improve efficiency.

Benefits of advanced techniques:
- Enhanced tensile strength and superelasticity.
- Greater design flexibility through layer-by-layer construction.
- Superior performance compared to conventional methods.

Explore further: Consult experts or research advanced NiTi laser processing to unlock its full potential for critical applications.

FAQ

What makes NiTi challenging to process with lasers?

NiTi’s shape memory and superelasticity complicate laser micromachining. Its high reflectivity and thermal conductivity reduce energy absorption, while its thermal sensitivity increases the risk of heat-affected zones. These properties demand precise control of laser parameters for accurate results.

Why are ultrashort pulse lasers ideal for NiTi micromachining?

Ultrashort pulse lasers minimize thermal damage by using femtosecond or picosecond pulses. This near-athermal ablation ensures clean cuts and preserves NiTi’s structural integrity. These lasers are ideal for applications requiring extreme precision, such as medical stents or aerospace components.

How does environmental control improve precision?

Environmental control stabilizes temperature, humidity, and air quality during laser micromachining. Controlled conditions prevent oxidation, thermal inconsistencies, and contamination. This ensures consistent laser-material interaction, reducing defects like microcracks or burrs.

What role does AI play in NiTi laser processing?

AI optimizes laser parameters in real time by analyzing sensor data. It adjusts power, pulse duration, and scanning speed to match NiTi’s properties. This reduces human error, enhances precision, and improves production efficiency.

Can hybrid methods improve NiTi laser micromachining?

Yes, hybrid methods like Laser-Assisted Electrochemical Machining (LECM) combine laser precision with complementary techniques. These approaches enhance cutting accuracy, reduce thermal damage, and improve surface quality, making them ideal for intricate designs and high-performance applications.

Tip: Consult experts to explore the best techniques for your specific NiTi application.
